Digital Matter
Bolt 2
Plug-and-play OBDII GPS tracking device with backup battery for real-time vehicle and fleet management
- High-precision GPS tracking device plugs into existing OBDII ports for real-time tracking
- Internal backup battery – if the device is removed from power it will continue to track for a period of time
- Critical ‘unplugged/power loss’ alerts to notify users of device removal, tampering, unauthorized trips, or theft
- Speeding, harsh braking and cornering, accident and rollover detection
- Electronic Odometer Calculations
- Accelerometer for adaptive and movement-based tracking
- Plug and play or splitter installation options
Features
CONNECTIVITY
The Bolt2 is available in Cellular LTE-M / NB-IoT
| LTE-M / NB-IoT | Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands Supported LTE bands: LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66 NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66 |
| SIM Size & Access | Internal Nano 4FF SIM |
LOCATION
| GNSS Module | UBLOX EVA-M8Q with TCXO |
| Constellation | Concurrent GPS / GLONASS / Galileo |
| Channels | 72 Channel High Sensitivity Receiver |
| Tracking Sensitivity | -167dBm industry-leading tracking performance |
| *Location Accuracy | ~2.0m CEP, 50%, 24 hours static, GPS, SBAS, -130dBm, > 6SVs |
| GNSS Assistance | GNSS almanac data for greater sensitivity and position accuracy |
| Low Noise Amplifier | GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail |
POWER
| Input Voltage | 8-36V DC (max). OBDII connector draws power from vehicle’s OBD port |
| Self-Resetting Fuse | Built-in self-resetting fuse makes installation simple and safe. Stringent automotive power “load dump” tests are conducted to ensure operation in the harshest electrical systems. |
| Operating Current | ~25/50mA when moving |
| Sleep Current | <1mA |
| Backup Battery | 200mAh LiPo internal backup battery pack |
MECHANICS / DESIGN
| Dimensions | 71 x 46 x 24 mm (2.8 x 1.81 x 0.94″) |
| Weight | 48 g (1.69 oz) |
| Housing | ABS Polycarbonate Plastic. Non-branded housing for optional white-labeling. |
| Operating Temperature | -30°C to +60°C |
| Installation | OBDII standard connector draws power from the OBDII port to operate |
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| RF Antenna | Internal |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement, high G-force events, and more |
| Diagnostic LED | Diagnostic LED signifies operation status |
| Flash Memory | Store weeks of records if device is out of cellular coverage. Storage capacity for over 10 days of continuous 30-second logging. |
| On-Board Speed and Heading |
The device continuously monitors speed and heading, allowing for over-speed alerts as well as updates on speed and heading changes. |
| On-Board Temperature | The device reports internal temperature and prevents the internal battery from charging in extreme temperatures. Internal temperature provides an indication of ambient temperature but may not always be precise. |
SMARTS
| Auto-APN | Auto-APN allows the device to analyze the SIM card and select the correct APN details from a list that is pre-loaded in the device’s firmware |
| Accident & Rollover Detection | Configure accident and rollover alerts triggered by extreme changes in velocity and orientation of vehicle or equipment. Second-by-second GPS data is saved on the device’s flash memory, with a capacity of approximately 2 hours of data. In the event of an accident, a subset of the data (60 seconds before / 10 seconds after) is uploaded to the server automatically (if configured) or can be requested manually for a detailed reconstruction of the incident. |
| Driver Safety & Behavior | Monitor speeding, harsh acceleration, braking, cornering, idling, and more to improve safety and prevent unnecessary wear on vehicles |
| Geofence Alerts | The server can use device location to create geofences and alerts if an asset enters or leaves designated locations |
| Preventative Maintenance | Set reminders based on distance traveled and run hours to reduce maintenance and repair costs |
| Real-Time Tracking | Device remains continuously connected while on the move for real-time asset tracking |
| Run Hour Monitoring | Calculate run hours and distance traveled (odometer) to understand and optimize asset utilization |
| Tamper/Removal Detection | Critical ‘unplugged/power loss’ alerts to notify users of device removal, tampering, unauthorized trips, or theft |
| Theft Recovery | Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval |
DEVICE MANAGEMENT
| Flexible Configuration | Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application |
| Device Management Platform | Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system |
| Configuration App | Configurable with DM-Link provisioning tool |
INTEGRATION
| Third-Party Integration | TCP Direct or HTTPS Webhook |
SECURITY
| Data Security | Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security. |
WARRANTY
| Manufacturer’s Warranty | Two-year manufacturer’s warranty. Exclusions apply. |
CERTIFICATIONS
| FCC, ISED, CE, ACMA RCM, EMC, RoHS
Visit support.digitalmatter.com for full device certifications for your region |

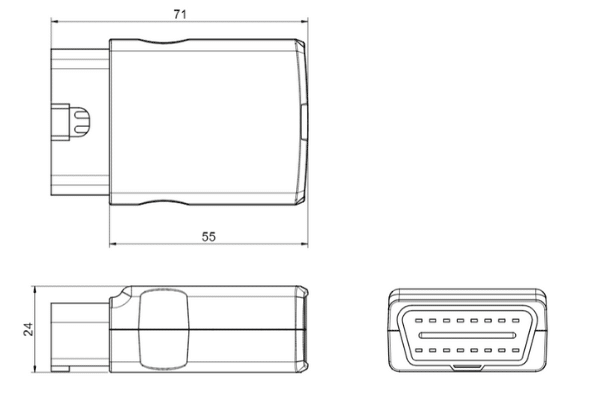

DIMENSIONS
*Positioning accuracy specifications are provided by the GNSS supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
